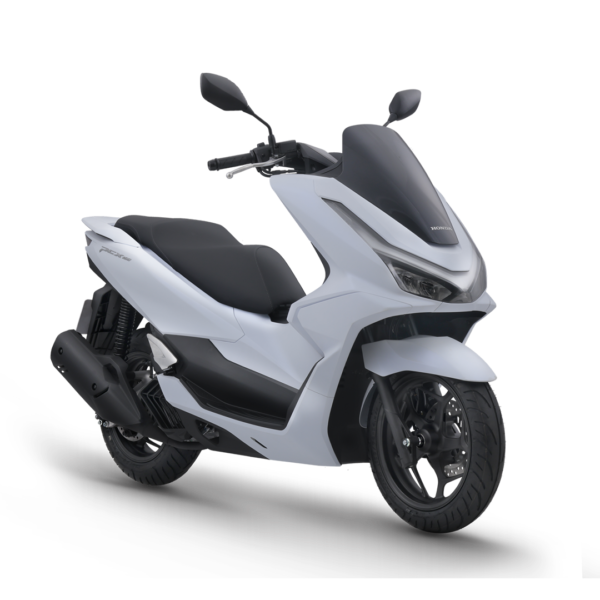

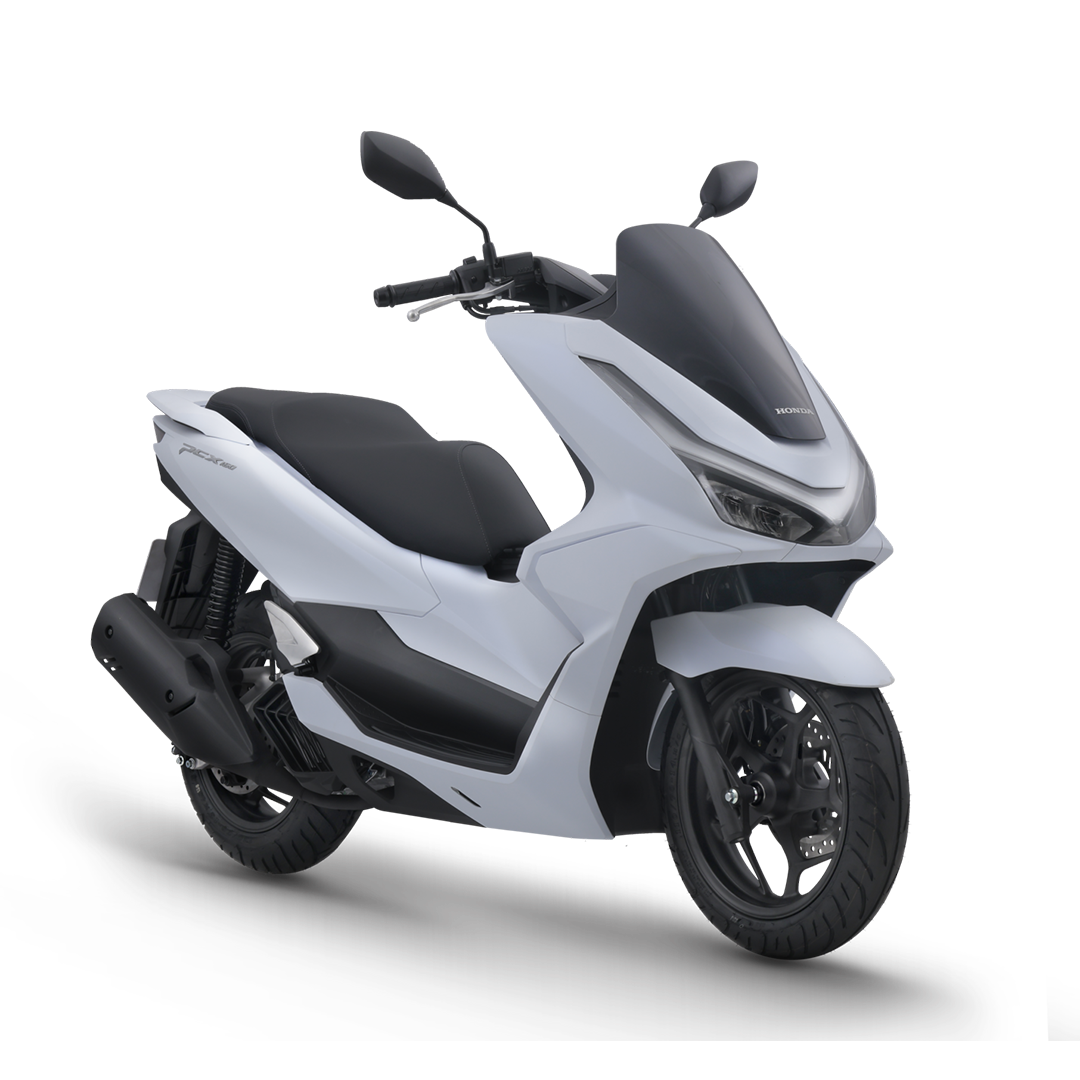

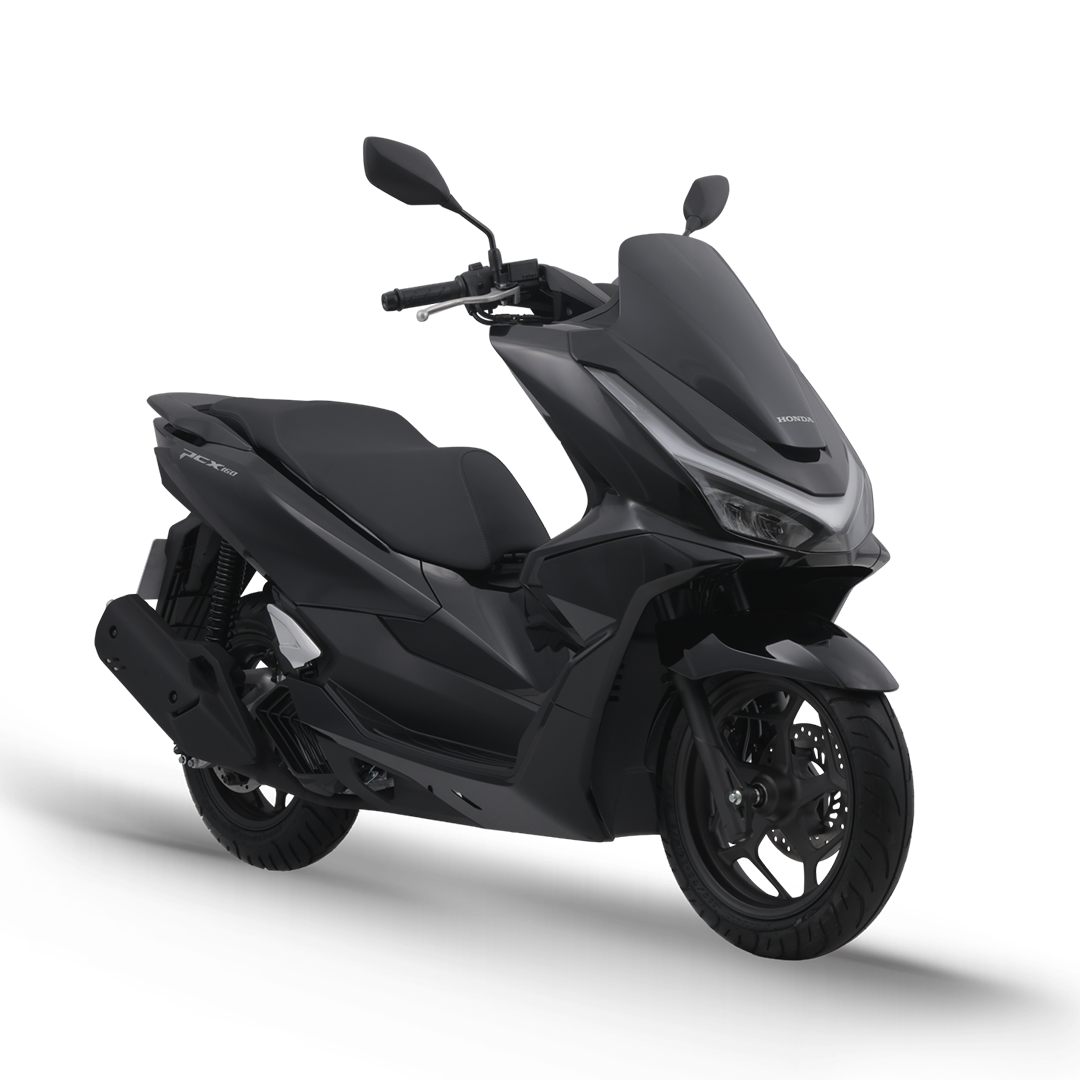

Honda PCX160 Standard
₱140,200.00
For cash purchase just message us at our Facebook Page : DES APPLIANCE PLAZA, INC
| Category | Specification |
|---|---|
| Engine Type | 4-Stroke, 4-Valve, SOHC, Liquid-Cooled, eSP+ |
| Displacement | 157 cc |
| Bore & Stroke | 60.0 × 55.5 mm |
| Compression Ratio | 12.0 : 1 |
| Maximum Power | 11.8 kW @ 8,500 rpm |
| Maximum Torque | 14.7 Nm @ 6,500 rpm |
| Starting System | Electric |
| Engine Oil Capacity | 0.9 L |
| Fuel System | PGM-FI |
| Fuel Consumption | 46.0 km/L (WMTC) |
| Transmission | Automatic (V-Matic) |
| Ignition Type | Full Transistorized |
| Battery | 12V – 5Ah (MF-WET) |
| Rear Suspension | Twin Shock |
| Front Brake | Hydraulic Disc |
| Rear Brake | Hydraulic Disc |
| Front Tire | 110/70-14 M/C 50P (Tubeless) |
| Rear Tire | 130/70-13 M/C 63P (Tubeless) |
| Wheel Type | Cast Wheel |
| Overall Dimensions (L × W × H) | 1,936 × 742 × 1,123 mm |
| Curb Weight | 132 kg |
| Seat Height | 764 mm |
| Wheelbase | 1,313 mm |
| Ground Clearance | 134 mm |
| Fuel Tank Capacity | 8.1 L |
| Meter Panel | LCD |
| Key System | Honda Smart Key |
| Lighting System | All LED Lighting |
